DF 20000
The Dust Fighter DF 20000 is a dust suppression unit with a maximum range of 60 metres, ideal for medium size outdoor areas.
Notes
If you are powering the Dust-Fighter from a generating set we suggest you use a 48 kW – 380V generator, or larger
Standard Equipment
- Integrated control panel
- Phase inverter
- Booster pump with peripheral impeller
- Flowmeter for pump protection
- Pressure gauge for outlet pressure reading
- Stainless steel crown with nozzles
- Water drain system
- Equipped with 2 wheels, tow bar and forklift pockets
- 2 height adjustable stabilizers
Optional
- Electric tilting
- Available on homologated road trailer
- Automatic oscillation system
- Remote control to switch on/off the fan, the pump and the electrical rotation, complete with macro-sequential controls
- Dosing pump for chemical additives
DF 20000
| Electrical engine power (fan) | 22 kW |

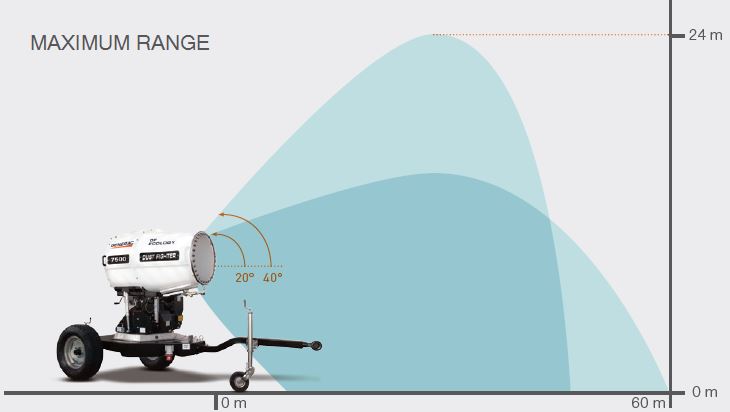

| Coverage (*without wind) | 50 – 60 m* |
| Electrical connection | Inlet Plug 3-phase – 63 A |
| Water connection | UNI 45 / STORZ / CAMLOCK |
| Minimum inlet pressure | 1,0 bar |
| Water consumption | 70 l/min |
| Water inlet filter | 180 micron |

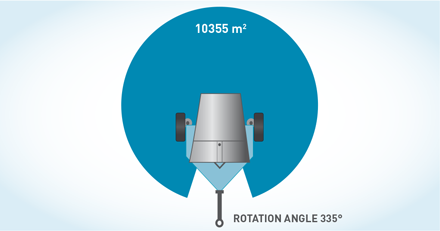

| Work angle | 335° |
| Tilting | 0 – 40° |
| Dimension with tow bar and wheels | 3300 x 1830 x 2180 mm (L x W x H) |
| Dry weight | 850 Kg |
